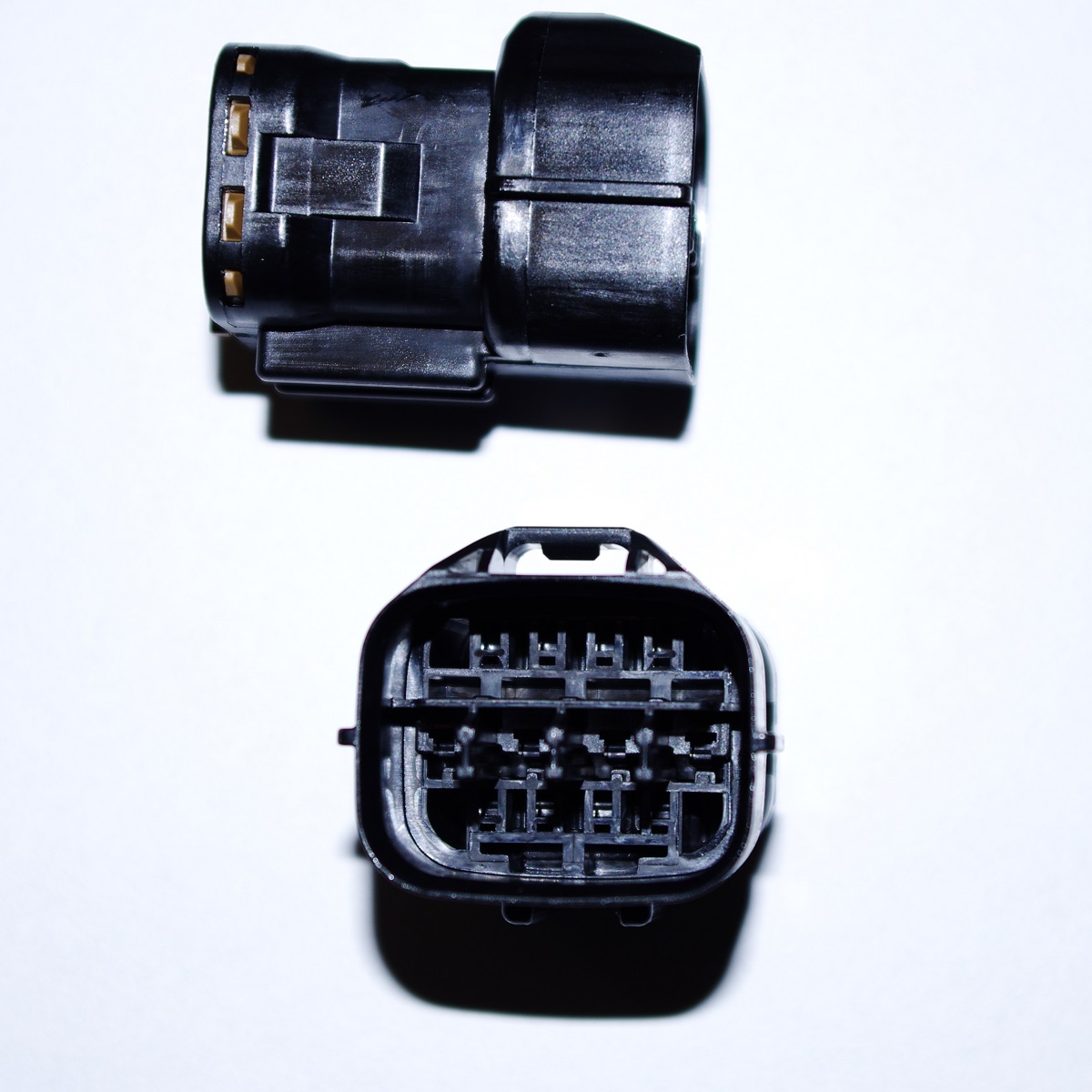

2G TRANS 12 M
The 2G TRANS12 M connector is sourced from the OEM connector manufacturer . It has 12 male terminals, 8 small and 4 large. It uses the same terminals as the 2G 97-CASM for the
small terminals. These are not available as a pigtail. But it will include terminals, seals, and the brown retainer. Note that the wire seals on the 8 small terminals will require a small
diameter wire, 18 gauge TXL is recommended. . Other wire types may use 18-22 gauge wire, depending on the thickness of the
insulator. For the 4 larger wires, 14-16 gauge TXL is recommended.
Cavity plugs are available.
The mating plug is also available here
DSM 1995-1996: A/T(A101), Eng-Chassis harness(A32)
DSM 1997-1999: A/T(A101), Eng-Chassis harness(A32)
