2G Solenoids
The 2G Solenoid connectors are replicas of the original Sumitomo connectors made by another connector manufacturer. If the OEM connector is required, I can get them. But these will work just fine. These are not available as a pigtail, but will include terminals, and seals.

All connectors ship with black wire seals by default. These wire seals are for wires with an OD of 1.7-2.7mm, and are good for 16-20 AWG GXL. If you need the smaller green seals, please specify it when ordering and we can swap them out as needed.


Seal Color Wire Diameters (mm)
Black 1.7 - 2.7
Green 1.3 - 1.7


2GSOL-A

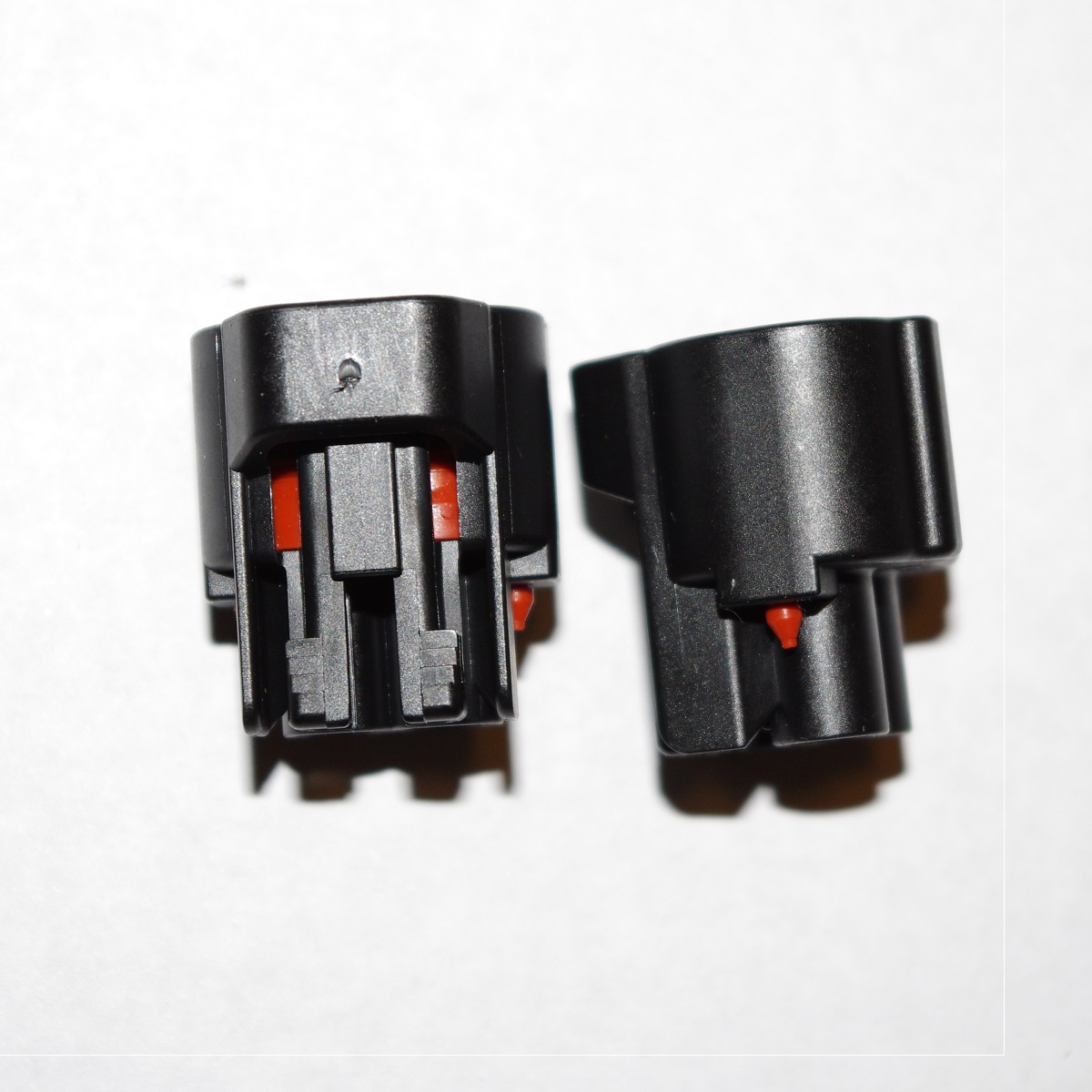

2G Solenoid A connector(black or blue) 2G Solenoid A connector(black or blue)

2GSOL-B
2G Solenoid B connector(black or blue) 2G Solenoid B connector(black or blue)
2G Solenoid terminals


Where used:
2GSOL-A:
DSM 1990:
DSM 1991-1994:
DSM 1995-1996: Evap Sol, Purge Sol
DSM 1997-1999: Evap Sol, Purge Sol
CSM:
Galant:
3S:
EVO: MIVEC solenoid
2GSOL-B:
DSM 1990:
DSM 1991-1994:
DSM 1995-1996: AC Dual Press Switch
DSM 1997-1999: AC Dual Press Switch
CSM:
Galant:
3S:
EVO: boost solenoid
2GSOL-A PN# CON-2GSOLA $5

Includes terminals and wire seals.
2GSOL-B PN# CON-2GSOLB $5

Includes terminals and wire seals.
