2G 97- CAS mate
The 2G 97-99 CAS mate connector is sourced from the OEM connector manufacturer . This connector is like the one built in to the 97- CAS sensor. These are not available as a pigtail, but will include terminals, seals, and the brown retainer. Note that the wire seals on these are very small, and will require a small diameter wire. 18 gauge TXL is recommended. Other wire types may use 18-22 gauge wire, depending on the thickness of the insulator.

Cavity plugs are available.

The mating connector for this is also available here.

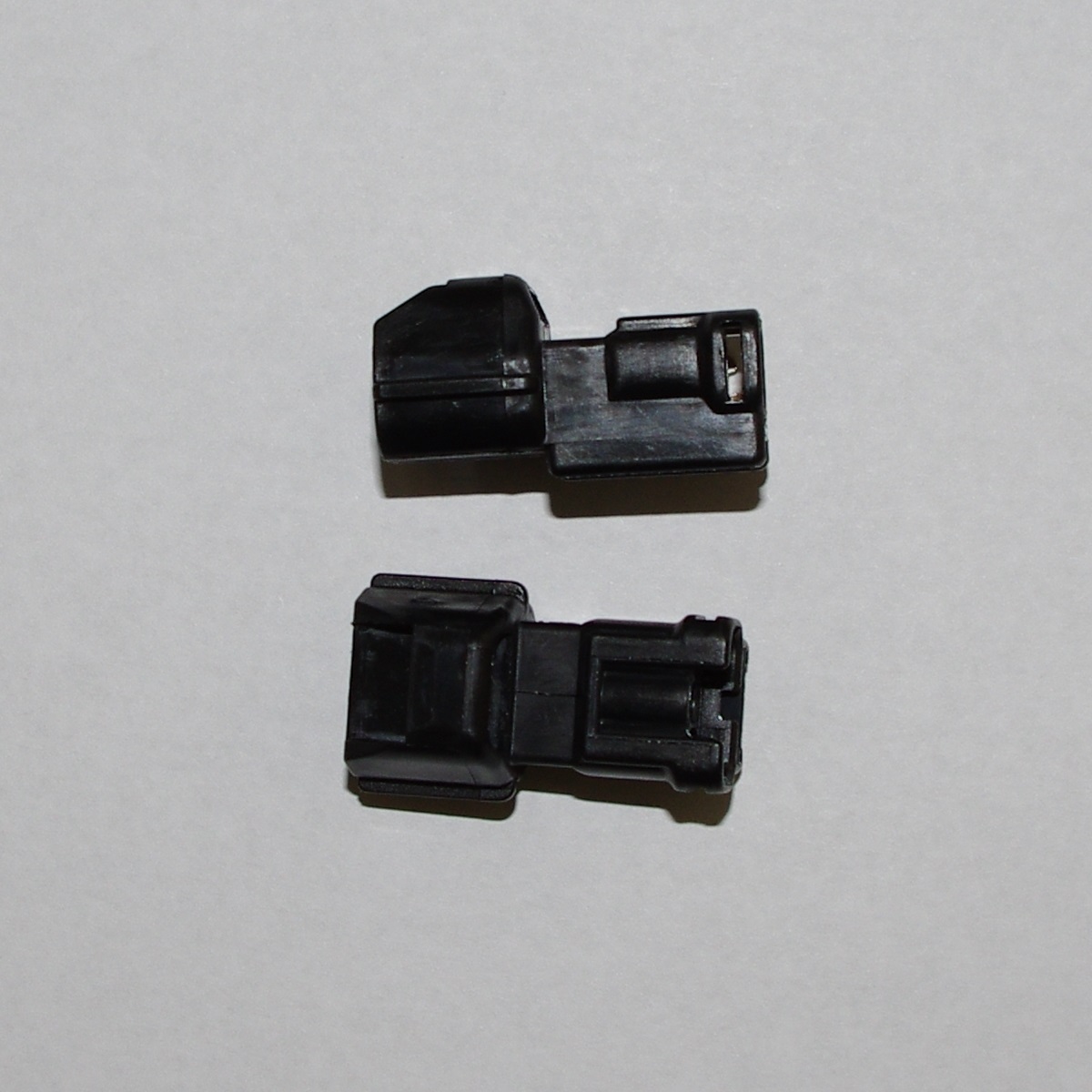

2G 97- CAS mate connector 2G 97- CAS mate connector

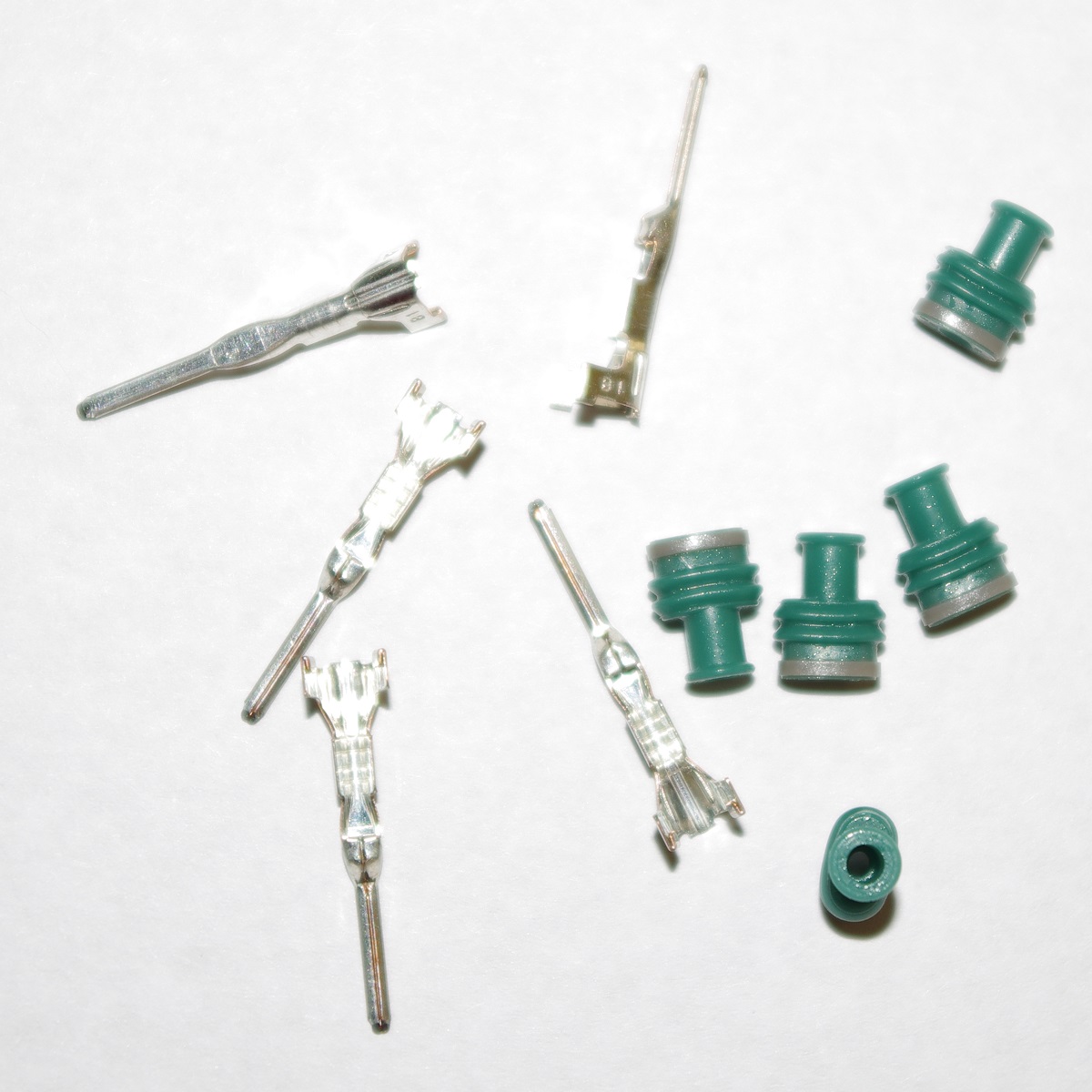

2G 97- CAS mate terminals

Where used:
DSM 1990:
DSM 1991-1994:
DSM 1995-1996:
DSM 1997-1999: CAS(sensor)
3S: 93- CAS(sensor)
2G97CAS PN# CON-2G97CASM $10

Includes terminals and wire seals.

Back to connectors page

All parts are shipped via USPS, and shipping charges are a flat $6 for small orders. For ordering information, email connectors@sheridanengineering.com .
